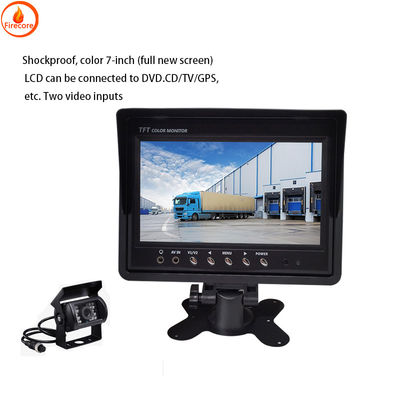

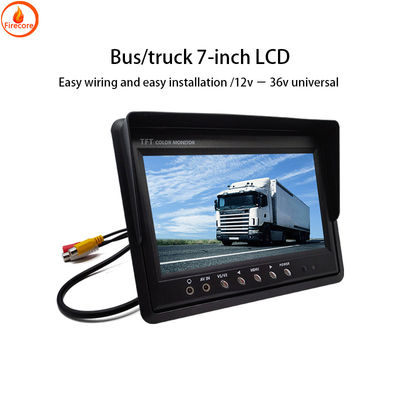

12V Car Camera Display 1080P Truck Camera Monitor 7 Inch AHD High Definition

Car display truck bus AHD high - definition camera

Product features and functions
1 .  Support monitoring and warning reminders for pedestrians and vehicles in blind spots on the left and right rear screens  .
2 .  Support four split and single screen monitoring modes  .
3 .  The machine displays images with a resolution of 1920 * 1080P and supports touch   remote control    and button control  .

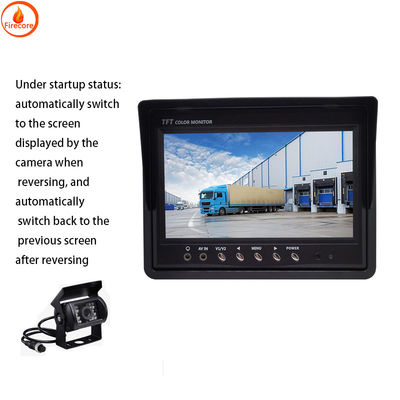

4 .  The rear    left     and right three ACC control lines can instantly activate the single screen for reverse    left turn   and right turn  .
5 .  The machine uses TF storage cards with a capacity of 80MB/S or above to store video files     with a maximum support of 256GB of storage     cards
6 .  The recorded video file is H.264 protocol video encoding and decoding   and the file format is TS   which can be played by any computer player  .
7 .  4-way general aviation plug    stable 12V power supply for camera    and equipped with camera short circuit protection function .
8 .  The machine power supply is a wide voltage input of 9V - 36V    suitable for installation and use in trucks    buses a

9 .  The positive and negative poles of the power cord are connected to the original vehicle battery   and the ACC wire is connected to the ignition key wire . The vehicle key controls the ignition and shutdown of the entire machine.

Product parameter table
Project Description

 Screen resolution supports high-definition IPS 1024 * 600    1280 * 800
Video recording operating system RTOS system
Power supply voltage range 9V-36V
Video recording format H.264 compressed TS format
Recording resolution 1280x720P AHD
Video streaming standard ISO14496-10
Video and audio input support
Video recording input CH1-CH4 interface   supporting AHD
Video data storage TF card storage    supports up to 256GB  requires a high - speed card with a read and write speed of 80MB / S or above
The working environment temperature of the machine can operate stably for a long time in an environment of -40 ° C to 75 ° C
Display effect scheme with large LCD display 3D noise reduction function
