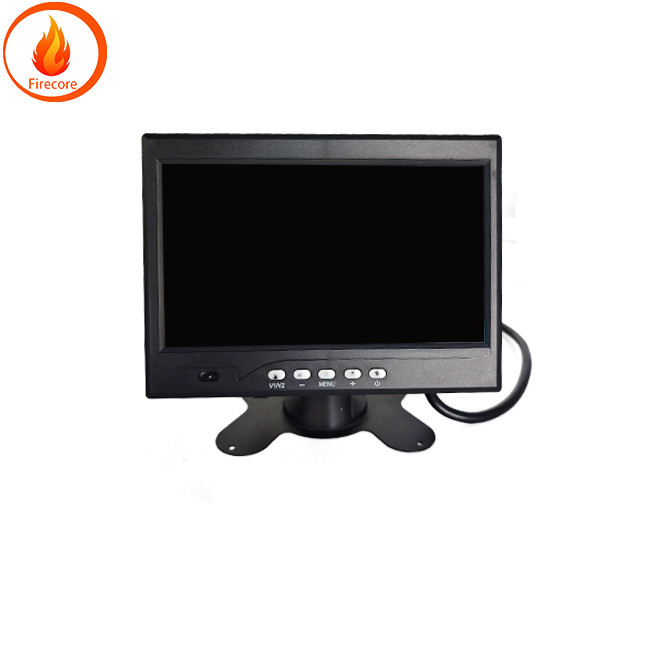

24V Car Wifi Monitor 7 Inch High Resolution LCD Display Screen

Car Wifi Monitor 7 - inch high - definition LCD 1024 * 600 display screen car monitor

Exclusive private model  patent

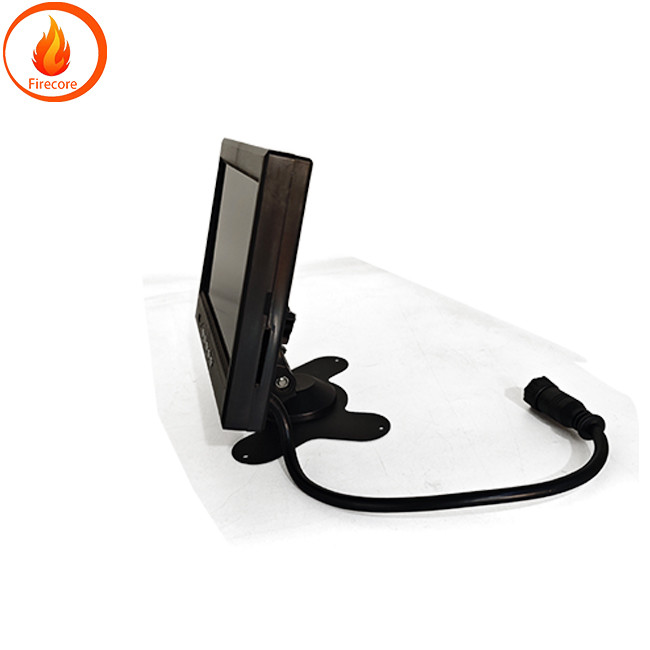

◆  Simple and stylish body   foldable bracket design   lightweight and portable
◆  Adopting 7 - inch high - resolution (1024)  ×  600) TFT LCD screen  with clear and delicate images and bright colors
◆  Support BNC input for professional safety monitoring equipment connection   reducing signal interference and achieving good signal performance    ( Most basic models on the market only have two AV channels and no BNC function )
◆  Supports AV input and can connect to video playback such as DVDs

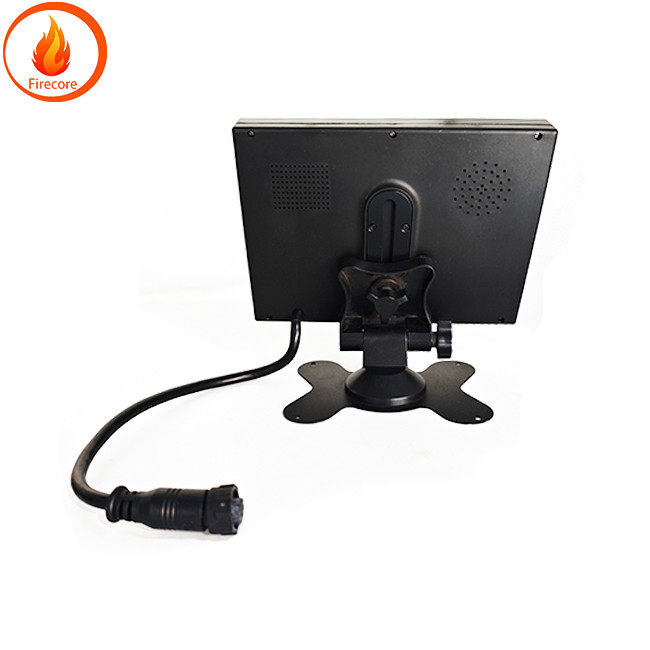

◆  Support audio input, built - in speaker  (optional ) ( When the built - in speaker is installed   the body has four wires   as shown in the picture (yellow BNC   yellow AV   white audio   red DC power)   When the speaker is not installed   the body has three wires  namely yellow BNC   white AV    and red DC power )
◆  Support image flipping control to adapt to different installation methods
◆  Equipped with timed on / off and automatic signal standby function

Product detailed parameters:
◆  Panel size :  7 - inch display screen
◆  Video input :  Flat 1Vp - P CVBS
◆  Ratio :  16 : 9
Resolution :  1024  x 600
◆  Effective display area :  154 points  ˉ  X86 mm
◆  Visual angle :  120 ° (H) / 100 ° (V)
◆  Panel lifespan :  10000 hours
Brightness :  250 cd/m2
◆  Contrast ratio :  300 : 1
Response time :  12ms
◆  Power input :  DC12V - 400mA
◆  Power mode support :  power adapter
Adjustable bracket :
◆  Horn :  1W (maximum) * 1
◆  OSD menu language selection :  English   Simplified Chinese
Temperature range (working) :  0 - 40 degrees Celsius

We are a professional manufacturer of research and development   productio  and vehicle monitoring

Car video recorder   car camera    car usb camera   car display   usb camera

Please contact us by email :  firecore1688@163.com

Method / Step :  First   take out the machine and debug it   The position of the front camera is fixed with screws and does not require drilling  The position of the rear camera is the same as the installation process of the front camera   Install the left camera under the rearview mirror  drill a hole with an electric drill   and fix it in place

There are two installation positions for the rear camera of the driving recorder :  one is installed on the license plate lampshade   and the other is installed on the rear glass inside the car    There are generally two ways to correctly operate the rear view camera of a driving recorder   and the

installation method is also different    One is installed on the license plate lampshade   which is waterproof and can also be used as a reverse image
